Comparisons of MD-11's and DC-10's in World Airways livery.

I've occasionally been asked how to tell the DC-10 and MD-11 apart. This photo guide using World Airways DC-10's and MD-11's might prove helpful. World operates DC-10-30's and MD-11's in both passenger and freight configuration. World currently has 2 liveries in its fleet, one all white (the old one), and one with the blue tail and red curved stripe (the new one). There are currently no DC-10F's in the new livery. Below are side-by-side comparisons in similar poses of DC-10F's and MD-11F's in the old livery, as well as DC-10 and MD-11 passenger airplanes in both the old and new livery.

See if you can spot some of the visible differences between the two aircraft:

The DC-10 is shorter than the MD-11 by roughly 20 feet (depends on the variant).
The MD-11 has winglets (the 'tipped up' parts at the ends of the wings). The DC-10 does not.
The DC-10's horizontal stabilizer (tail) is larger than the MD-11's.
The DC-10's tailcone is rounded, the MD-11's is squared off (like a flathead screwdriver).
The DC-10's lower aft cargo door on the right side is in the wing root fairing. The MD-11's is aft of the faired area.
The #2 engine inlet on the MD-11 is larger than on the DC-10.
DC-10-10 series aircraft (not shown here) do not have center gear. DC-10-30 series and MD-11 aircraft do have center gear.

This column contains DC-10's.	This column contains MD-11's

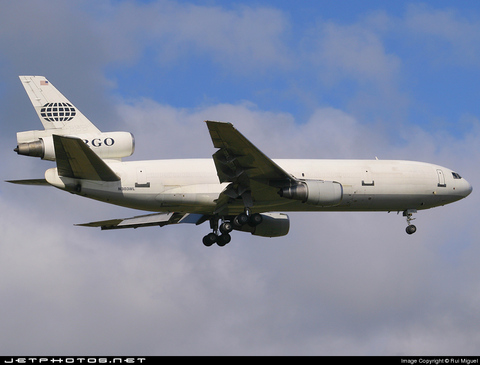

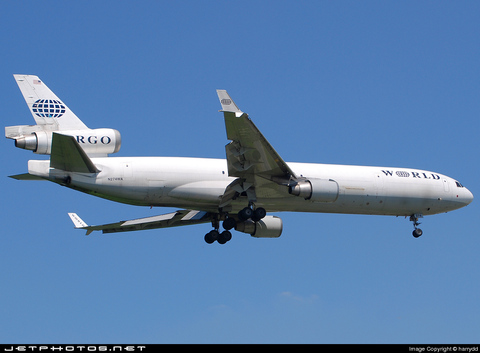

DC-10F on final	MD-11F on final

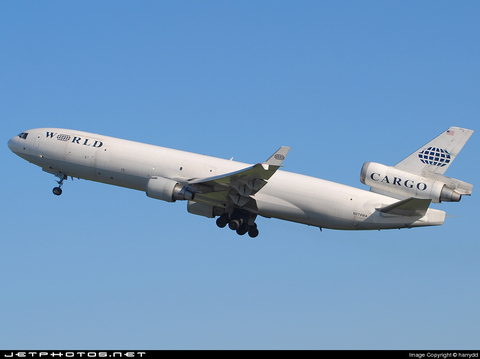

Removed prior to public publication per Wim Callaert DC-10F taking off	MD-11F taking off

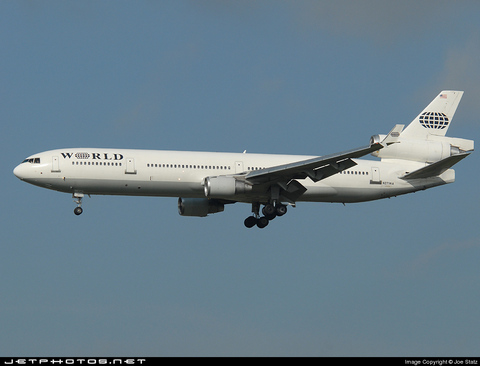

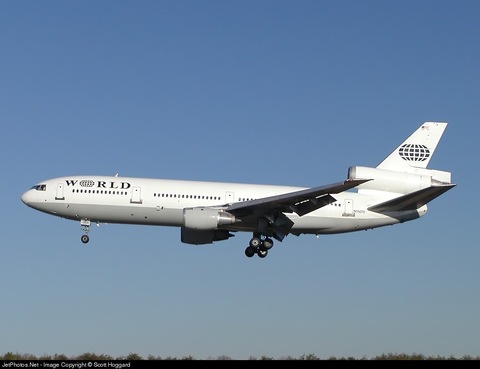

DC-10 Passenger on final	MD-11 Passenger on final

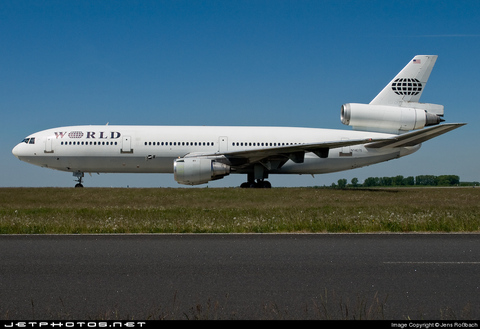

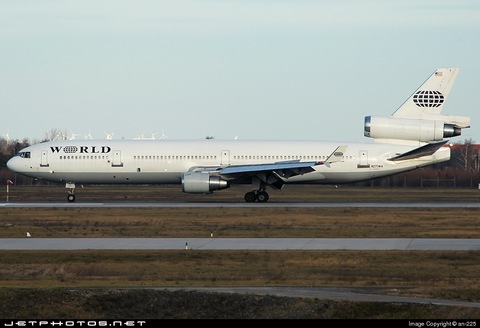

DC-10 Passenger taxiing	MD-11 Passenger taxiing

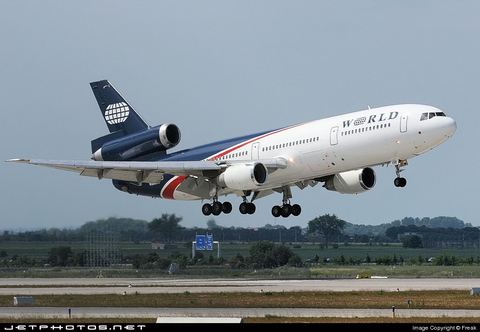

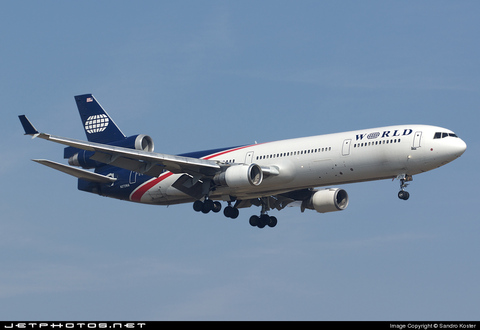

DC-10 Passenger new livery on final	MD-11 Passenger new livery on final

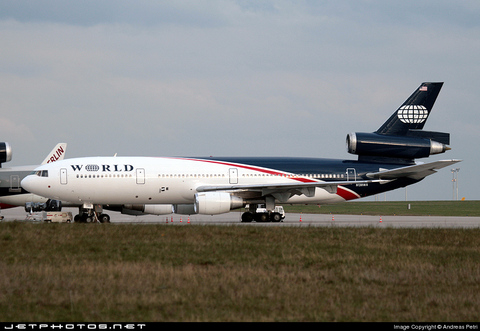

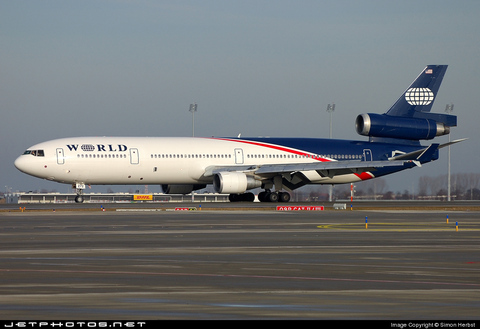

DC-10 Passenger new livery on the ground	MD-11 Passenger new livery on the ground

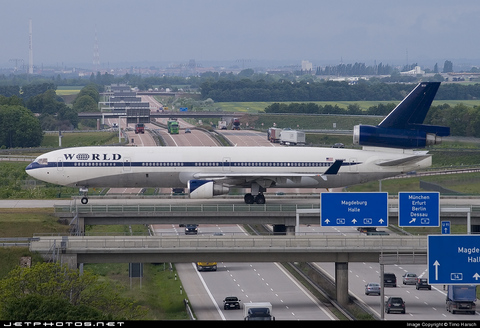

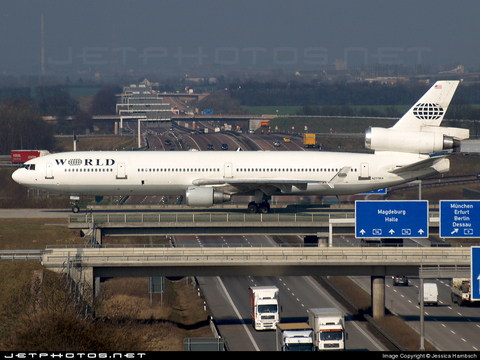

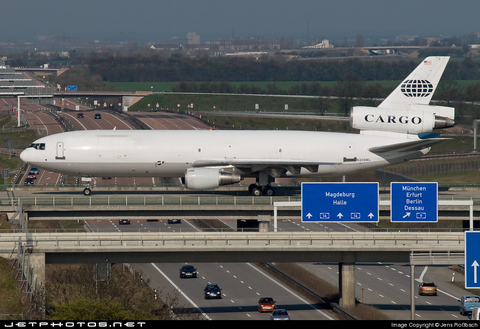

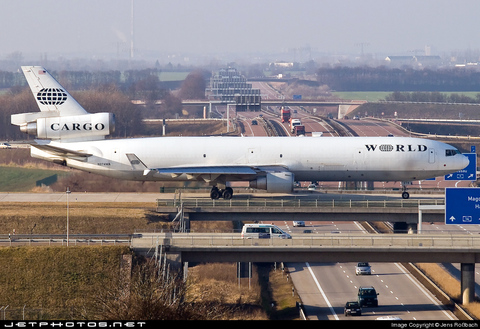

... and just for fun, here's a set of pictures of various World aircraft crossing the same bridge in Leipzig, Germany. Included below is N801DE, a former Delta MD-11 in partial Delta colors. It has since been sold to UPS.

All of these photos are copyright jetphotos.net and are available in higher resolution versions at jetphotos.net.
